12-Inch Water Transfer Equipment
12 Inch Hydraulic Layflat Pincher for Precision Flow Control
The 12 inch hydraulic layflat pincher from Gusher Gear is engineered for operators who need dependable flow restriction in a compact, field-ready package. Designed for 12-inch layflat hose, the unit applies controlled hydraulic compression without cutting the hose or introducing an inline valve assembly.
Its compact footprint supports mobile water-transfer spreads, fixed installations and tighter jobsite layouts where rapid deployment and predictable hose control matter. The rigid steel frame and serviceable design are built for demanding oilfield water-transfer and industrial fluid-handling environments.
12 Inch
Hydraulic
A36 Steel
Compact Control. Field-Ready Performance.
A precision hydraulic actuation system gives operators repeatable control when restricting or isolating flow. The frame distributes pressure across the hose, helping reduce localized stress while keeping the assembly straightforward to deploy and service. This makes the 12-inch model a practical fit for operations that need rugged water-transfer equipment without the footprint of a larger unit.
How the Hydraulic Pincher Works
The pincher is positioned around the layflat hose at the point where flow control is required. Hydraulic force moves the pinch assembly against the hose, creating a controlled restriction as the hose is compressed. Operators can use the system as part of an established procedure for managing flow during transfer, maintenance, equipment changes or line isolation.
Because the 12 inch hydraulic layflat pincher works externally, it can provide a practical alternative when cutting the hose or adding another inline component is undesirable. The exact operating procedure, hydraulic supply and level of restriction should always follow the job plan, hose manufacturer’s guidance and Gusher Gear recommendations.
Key Product Benefits
Repeatable Flow Restriction
Precision hydraulic pinch control supports consistent field operation.
Compact Footprint
A low-profile format fits tighter layouts and mobile equipment packages.
Hose-Conscious Design
Designed to restrict flow without cutting or permanently modifying the hose.
Field-Ready Construction
A rigid steel frame supports demanding oilfield and industrial use.
Planning the Installation
Before deployment, confirm the hose outside dimensions, construction and operating condition are compatible with the pincher. Plan sufficient clearance for the frame and hydraulic connections, and keep the unit accessible for inspection and service. The supporting structure should be appropriate for the weight and operating loads of the equipment.
Inspect the layflat hose before every use and do not operate on hose that is damaged, excessively worn or outside the approved size range. Personnel should follow site-specific lockout, pressure-control and personal-protective-equipment procedures. Contact Gusher Gear when hydraulic requirements, mounting details or application suitability need to be confirmed.
Common Applications
Produced-Water Handling
Frac Logistics
Construction Dewatering
Bypass & Isolation Lines
Industrial Fluid Movement
Need Capacity for a Larger Hose?

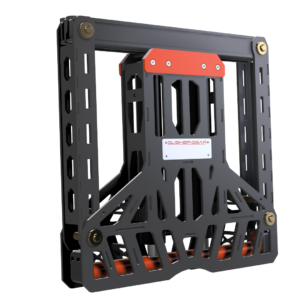

For full-size 16-inch layflat systems, compare this compact model with the Gusher Gear 16-inch hydraulic layflat pincher.
Frequently Asked Questions
What hose size is this model designed for?
This model is intended for compatible 12-inch layflat hose systems. Hose construction and actual dimensions can vary, so compatibility should be confirmed before ordering or operating the equipment.
Can the unit completely stop flow?
The achievable restriction depends on the hose, system pressure, hydraulic setup and approved operating procedure. Discuss the intended application with Gusher Gear rather than assuming the pincher provides a verified zero-flow isolation point.
Is a larger model available?
Yes. Gusher Gear also offers a 16-inch model for compatible full-size layflat systems. Compare the two product pages or contact the team to select the appropriate equipment for the hose and operating plan.
Confirm the Right Pincher for Your System
Share your hose size, operating pressure, hydraulic setup and installation requirements with Gusher Gear. The team can help confirm compatibility and provide current pricing and availability.
Confirm hose compatibility, hydraulic requirements and operating procedures with Gusher Gear before deployment.
